Commercial and Industrial
Systems

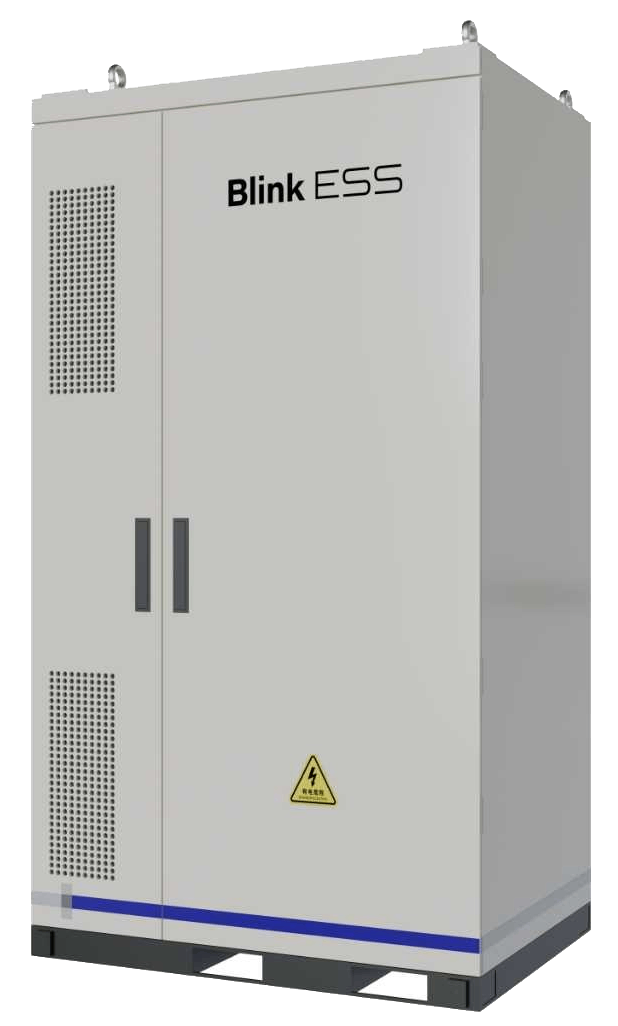

Blink Series2330

All-in-One Energy Storage System
01

Safe and Efficient

Efficient and intelligent thermal management
Hierarchical linkage protection
Cabinet fire barrier, 1200 °C * 2h
02

Economical and Reliable

Highly integrated design, system efficiency up to 88%
Lithium iron phosphate long - life battery with a cycle life of 6000 cycles
30% lower energy consumption than air-cooling system
03

Smart and Friendly

With energy storage cloud platform, full life cycle health management
Built-in EMS, multiple operating modes to increase revenue
Strong compatibility, support remote upgrade and control
04

Flexible Layout

All-in-one design, can be directly connected to the low-voltage distribution network
Adapt to different application scenarios
Easy installation and debugging, flexible

Product Parameters

PCS / AC Side
Specification
Rated AC Power
125kW
Rated Current
150A
Output
480VAC
Overload Capability
110% of rated power
Battery (DC Side)
Chemistry
LiFePO4
Nominal Capacity
280Ah
Power Rate
0.5P
Battery Pack Configuration
1P52S
Battery Rack Configuration
1P260S
System Rated Voltage
832V
Operating Voltage Range
728–936V
System
Rated Energy
233kWh
Cycle Life
8000 cycles @ (0.5C/0.5C, DOD90%, 70%EOL)
Cooling Way
Liquid cooling
Fire Protection
PACK grade (aerosol) + Cluster grade (aerosol + water spray)
Communication Way
CAN/RS485/Ethernet
IP Rating
IP54 for cabinet, IP67 for pack
Weight & Dimension (W*D*H)
≤2800kg & 1400×1380×2385 (mm)
Certification
UL1973 UL9540A UL9540

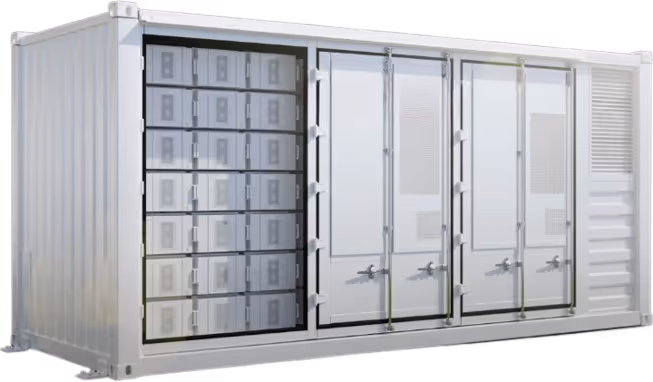

Blink Series 3850

Reduced Cost | Increased Efficiency | Safety | Smart

Product Parameters

Model
Blink Series 3850
Battery Type
LFP 314Ah
Rated Energy
3.85 MWh
Rated Power
2 MW
DC Rated Voltage
1228.8V
DC Voltage Range
1075.2V ~ 1382.4V
Max. Efficiency of System
>89%
IP Protection Level
IP54
Weight
36,000kg
Communication Interface
Wired: LAN, CAN, RS485
Communication Protocol
Modbus TCP
System Certification
IEC 62619, IEC 60730-1, IEC 63056, IEC/EN 62477, IEC/EN 61000, UL 1973, UL 9540A, UL 9540,CE Marking, UN 38.3, ISO 9001, ISO 14001, ISO 45001, TÜV Certification, DNV Certification, NFPA855.
